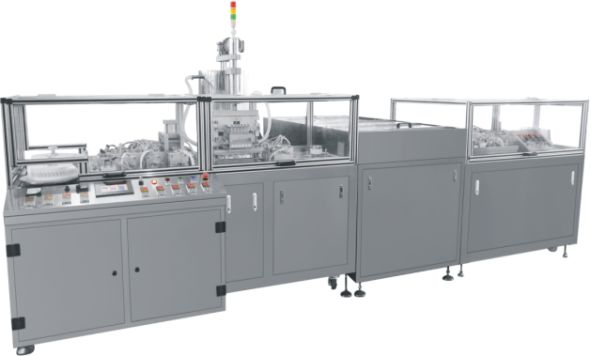

High Speed Automatic Suppository Production Line Servo Filling and Cutting

HY-ZL-7 Series Machine Advantages

a) PLC inspection function: through PLC online monitoring function can inspect automatic running fault and alarm as the same time show the reason of running fault its convenient operator to remove the fault timely

b) The filling part with removing static electricity system.The filling system use the stability servo filling system to keep the machine filling precision.

Note: before forming shell reach filling place if without this device because trace drug filling and close shell top position will along the shell wall climb up a small hill under the static electricity function reach suppository sealing part will affect the quality of  behind the seal.

c)Stirring barrel speed adjustable system.The barrel is within 3layers, 2layers for heating system,1layer for

heat insulation.

Note: because of the drug material different and the viscosity different maybe the same stirring result cannot mix drug uniform before filling so that affect finished suppository products drug content.

d)Cooling speed adjustable system. The temperature of the freezing box can up to under 8degree.It is easy for special medicine freezing.

Note: because of different drug different components maybe need different cooling speed; when the cooling speed too slowly will reduce the whole machine production efficiency;if the cooling speed too high maybe due to drug suddenly drops temperature then fracture therefore cooling speed need adjustable

e) Shearing granules quantity can adjustable system.

Note:According to customers requirement can convenient set up finished products granules

as 1/2/3/4/5/6/7….granules, can be cut freely.

f) The finished products can meet the leakage test.

g) The complete line can meet GMP requirement.

Specification and Main Parameters of Goods:
